What Is Modified Cast Nylon? Types, Properties, and Applications

What Is Modified Cast Nylon?

Cast nylon, also known as MC nylon or PA6G (polyamide 6 – cast), is a type of engineering plastic produced through an anionic polymerization process. Unlike extruded PA6 or PA66, cast nylon offers high molecular weight, better dimensional stability, and the flexibility to create large-size components with low internal stress.

Modified cast nylon takes this already-robust material and tailors it further with additives and fillers to improve performance in specific environments. These modifications enable cast nylon to replace metal parts in demanding applications, making it a versatile choice for industrial engineers.

Common Types of Modified Cast Nylon

1. Oil-Filled Cast Nylon

This is the most common modified MC nylon. During the polymerization process, oil-based lubricants are embedded into the molecular structure of the nylon, resulting in a material with excellent self-lubricating properties.

Benefits:

• Low coefficient of friction

• Excellent wear resistance without external lubrication

• Reduced maintenance costs

Applications:

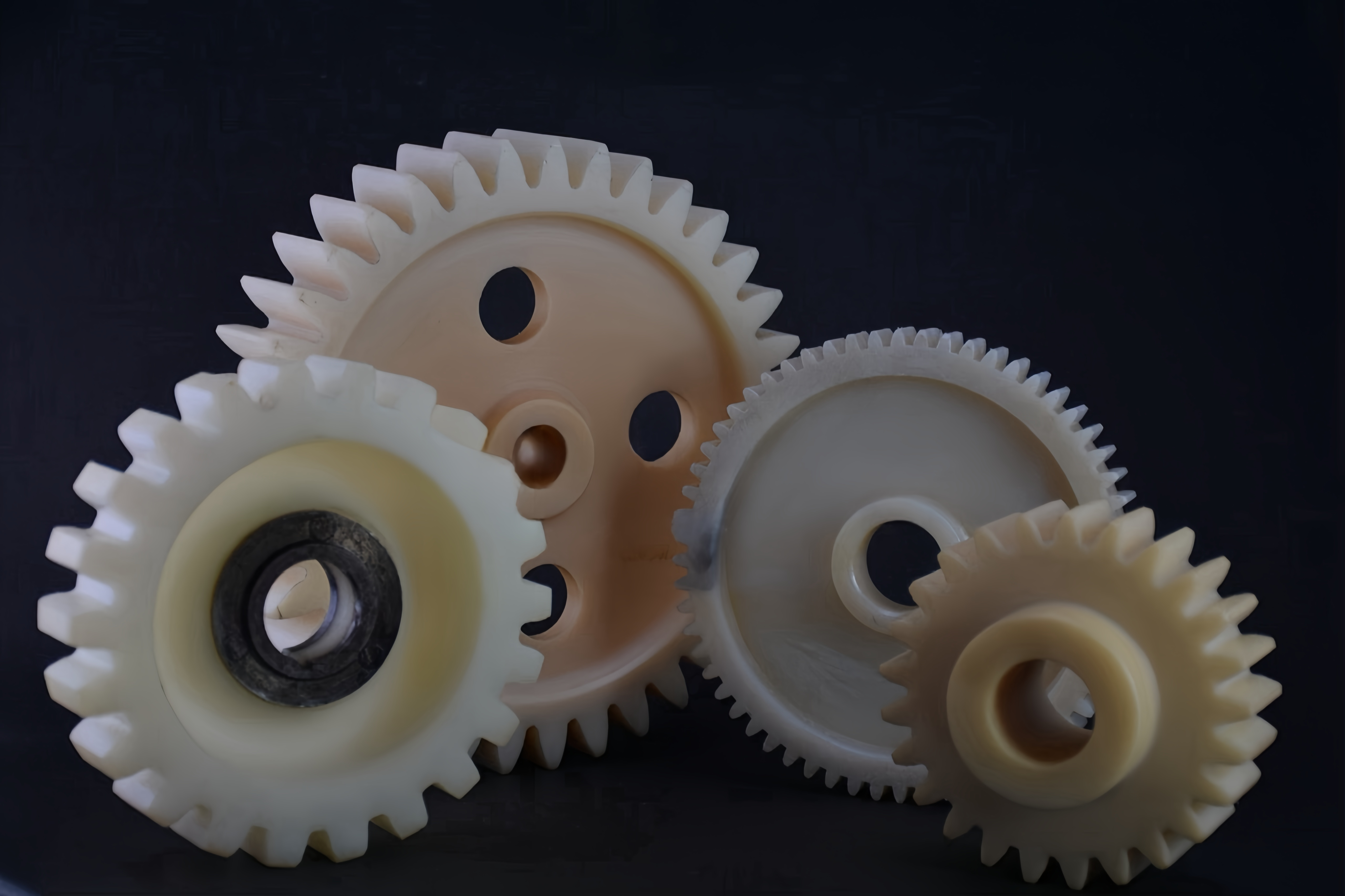

• Rollers, slide pads, bushings, gears, sprockets in conveyors and packaging lines

2. Glass Fiber Reinforced Cast Nylon

In this type, glass fiber is added to increase stiffness and strength. Though this reduces impact resistance slightly, it significantly improves mechanical load-bearing and thermal stability.

Benefits:

• Up to 2–3x tensile strength of unmodified cast nylon

• Increased dimensional stability under load

• Higher thermal deflection temperature

Applications:

• Structural machine parts, bearing housings, gear bases, support blocks

3. Antistatic or Conductive Cast Nylon

This modified MC nylon includes carbon black, carbon fiber, or other conductive fillers to achieve low surface resistivity. These materials can be engineered for antistatic (ESD-safe) or fully conductive applications.

Benefits:

• Dissipates static electricity

• Prevents dust accumulation

• Suitable for sensitive electronic or flammable environments

Applications:

• Electronics trays, conveyor rollers in powder processing, ATEX zone parts

4. Flame Retardant Cast Nylon

Through the addition of flame-retardant additives (often halogen-free), this type of nylon resists ignition and slows fire propagation.

Benefits:

• Meets UL94 V-0 or V-2 standards

• Maintains mechanical performance under fire risk

• Halogen-free options for eco-compliance

Applications:

• Electrical insulators, transport system components, appliance casings

Advantages of Modified Cast Nylon Over Standard MC Nylon

This flexibility allows product designers and engineers to choose the exact balance of properties required for their use cases.

Typical Industrial Applications

Modified cast nylon is used in a wide range of industries due to its excellent mechanical and chemical properties. Some examples include:

• Automotive: bushings, bearing cages, cam followers

• Material Handling: conveyor rollers, guide rails

• Food Industry: oil-filled rollers, cutting guides (food-safe grades available)

• Electronics: antistatic trays, motor housing

• Rail & Transit: flame-retardant insulation parts

• Mining & Heavy Machinery: wear plates, pulleys, sprockets

Things to Consider When Choosing Modified Cast Nylon

1. Operating Temperature – GF nylon tolerates higher heat, while oil-filled types perform better at lower frictional temperatures.

2. Moisture Exposure – Cast nylon absorbs water, but certain modifiers reduce this. Consider sealing or coating for humid environments.

3. Load-Bearing Requirements – For high loads, choose glass fiber reinforced versions.

4. Contact Surface – For sliding components, oil-filled or MoS2-modified cast nylon is ideal.

5. ESD or Fire Safety Requirements – Choose certified antistatic or FR grades accordingly.

Conclusion

Modified cast nylon (PA6G) is one of the most versatile materials in modern engineering plastics. Whether you're designing for wear resistance, strength, electrical safety, or fire protection, there’s a version of cast nylon that can meet your specifications.

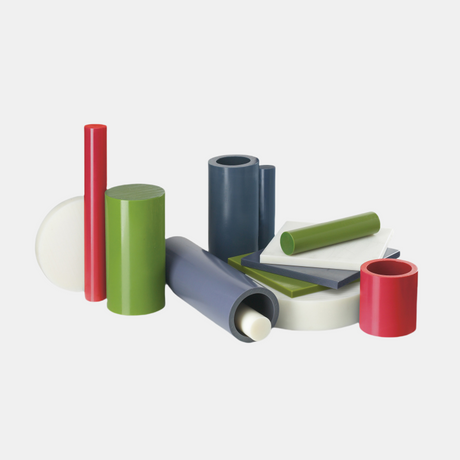

At ZHnylon, we offer a full range of modified cast nylon products, including oil-filled tubes, glass fiber reinforced rods, antistatic sheets, and custom flame-retardant parts. Our materials are engineered for performance, reliability, and cost-efficiency in real industrial applications.
