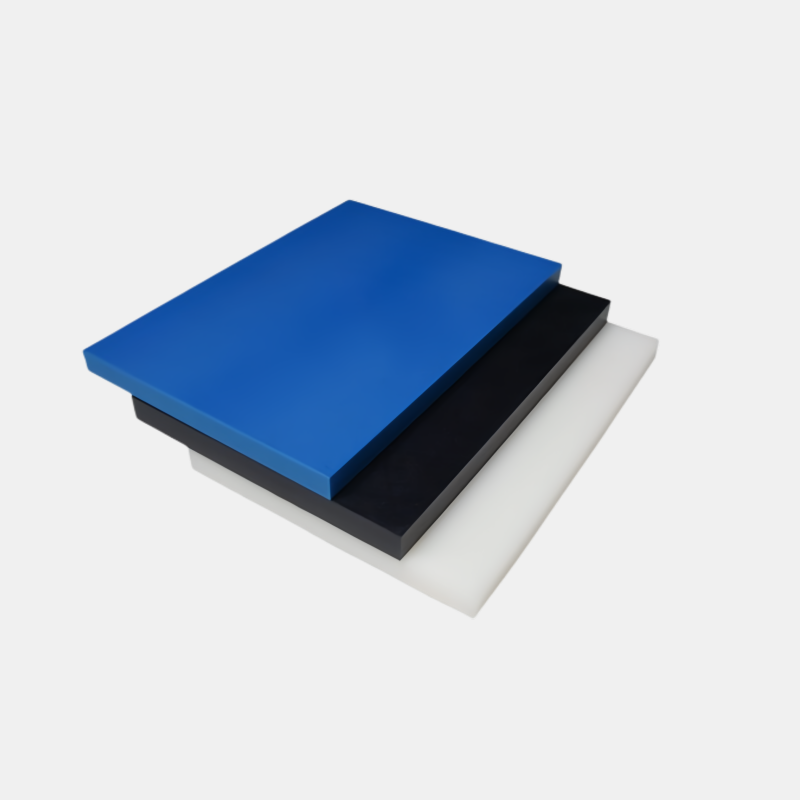

MC Nylon Sheet

MC nylon sheets are engineered plastics notable for strong mechanical properties and resistance to wear and chemicals.
Produced via a controlled casting process, these sheets ensure consistent quality and durability.
Their structure provides excellent impact and fatigue resistance, ideal for heavy-duty applications.

Application:

Frequently used in manufacturing, construction, and automotive industries for machine guards, structural supports, and custom fabrications.

Availability:

Quantity:



Inquire Add to Basket

Product Description

ZHnylon™ MC Nylon Sheets are designed to meet the diverse needs of various industrial applications. We manufacture a wide range of high-quality MC Nylon sheets, available in standard sizes to fit common project requirements. Whether you need sheets for general use or specific dimensions, ZHnylon™ provides flexible solutions tailored to your needs.

Refer to the size chart below for more details on our nylon sheet offerings.

MC Nylon Sheet Specifications Size Chart
Dimensions (mm)	Weight (KG)	Dimensions (mm)	Weight (KG)	Dimensions (mm)	Weight (KG)	Dimensions (mm)	Weight (KG)
5T10002000	12	40T10002000	96	100T10002000	240	70T6001200	60.48
6T10002000	14.4	45T10002000	108	25T6001200	21.6	75T6001200	64.8
8T10002000	19.2	50T10002000	120	30T6001200	25.92	80T6001200	69.12
10T10002000	24	55T10002000	132	35T6001200	30.24	90T6001200	77.76
12T10002000	28.8	60T10002000	144	40T6001200	64.56	100T6001200	86.4
15T10002000	36	65T10002000	156	45T6001200	38.88	110T6001200	95.04
20T10002000	48	70T10002000	168	50T6001200	43.2	120T6001200	103.68
25T10002000	60	75T10002000	180	55T6001200	47.52	100T5001200	86.4
30T10002000	72	80T10002000	192	60T6001200	51.84	65T6001200	56.16

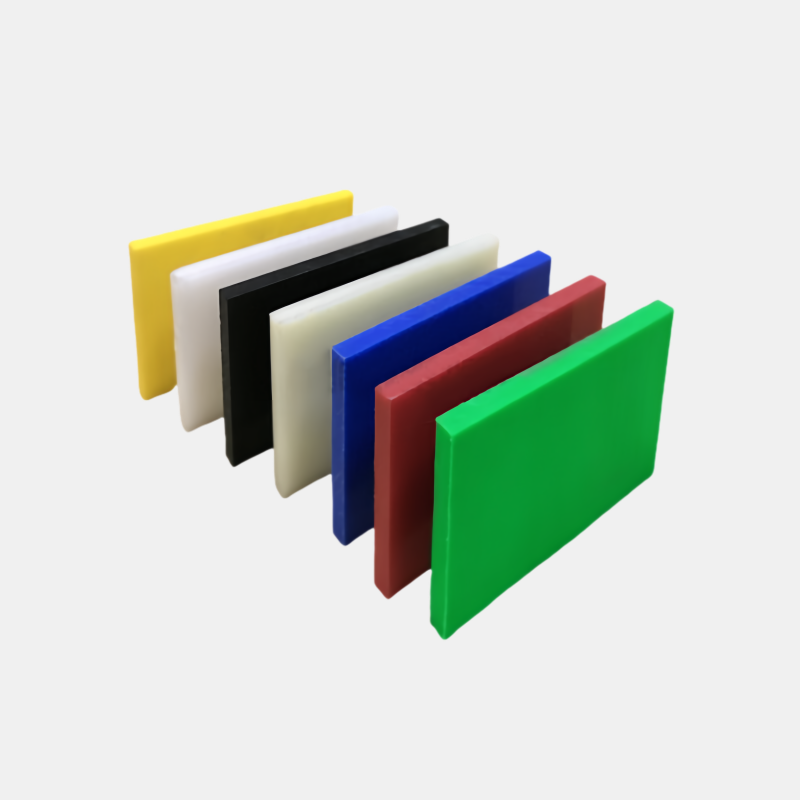

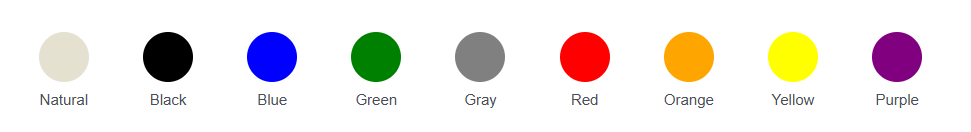

Nylon Sheet Standard Colors

ZHnylon™ provides a selection of standard colors including natural, black, blue, green, gray, red, orange, yellow, and purple. For specific needs, we also offer custom color options to perfectly match your project requirements.

Nylon Sheet Properties

ZHnylon™ MC Nylon Sheets are expertly crafted to fulfill a wide range of industrial and engineering requirements. Utilizing an advanced casting process, our MC Nylon sheets are designed to deliver outstanding performance in even the most demanding applications. We offer a variety of standard sizes, along with customization options for dimensions and color, ensuring ZHnylon™ products meet your specific project needs effectively and efficiently.

Key Advantages:

Ultra-high strength: Tensile strength up to 80 MPa, bending strength up to 120 MPa.
Super Wear-resistant: Withstands abrasive environments for long-term reliability and reduced maintenance.
Ultra-low Friction Coefficient: As low as 0.1, providing efficient operation and reducing wear on moving parts.
Ultra-long Service Life: Can be used for up to 15 years, more than doubling the service life of parts.
Super heat-resistant: Can work at 80°C to 100°C for a long time, and can be used at up to 180°C.
Super Weather Resistance: Long-term exposure to natural environment
Easy to Process: Easily cut into various shapes according to requirements.

MC Nylon Product Test Results
Item	Unit	Value	Test Standard	Note
Tensile strength	MPa	76.6	ISO 527-2:2012	--
Elongation at break	%	47	ISO 527-2:2012	--
Flexural strength	MPa	118	ISO 604:2002	--
Compressive strength	MPa	127	ISO 178:2010	--
Hardness	Shore D	83	ISO 868:2003	--
Heat deflection temperature	℃	211	ISO 11357-3:2018	--
Thermal expansion coefficient	K⁻¹	96.5×10⁻⁶	ISO 11359-2:1999	--
Volume resistivity	Ω	4.84×10¹⁵	IEC 60093:1980	--
Surface resistivity	Ω⋅cm	9.19×10¹⁵	IEC 60093:1980	--
Dielectric constant (100Hz)	--	3.91	IEC 60250:1969	--
Density	g/cm³	1.152	ISO 1183-1:2004	--
Water absorption	%	0.8	ISO 62:2008	--
Charpy impact strength	kJ/m²	9.3	ISO 180:2000	Fracture type: C
Coefficient of friction	--	μk: 0.150 / μd: 0.128	ISO 8295-1995	--
Flammability	%	23.3	ISO 4589-2:2017	Horizontal orientation, 120°C/h, 1.8MPa
Continuous use temperature	℃	67	ISO 75-1:2013	--
Dielectric strength	kV/mm	17.8	IEC 60243-1:2013	--

Nylon Sheet Applications

ZHnylon™ MC Nylon Sheets are trusted in a wide array of industries due to their versatility and reliability. From heavy machinery and construction to automotive and food processing, these sheets provide exceptional strength and durability needed for demanding applications. Whether used for structural parts, wear components, or customized solutions, ZHnylon™ MC Nylon Sheets help industries achieve higher efficiency and performance.

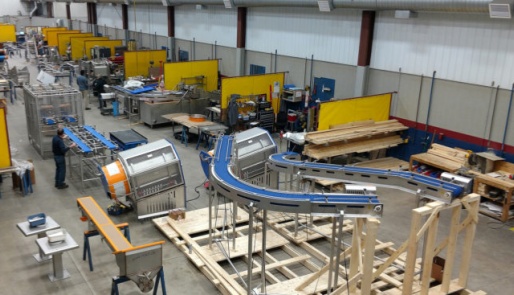

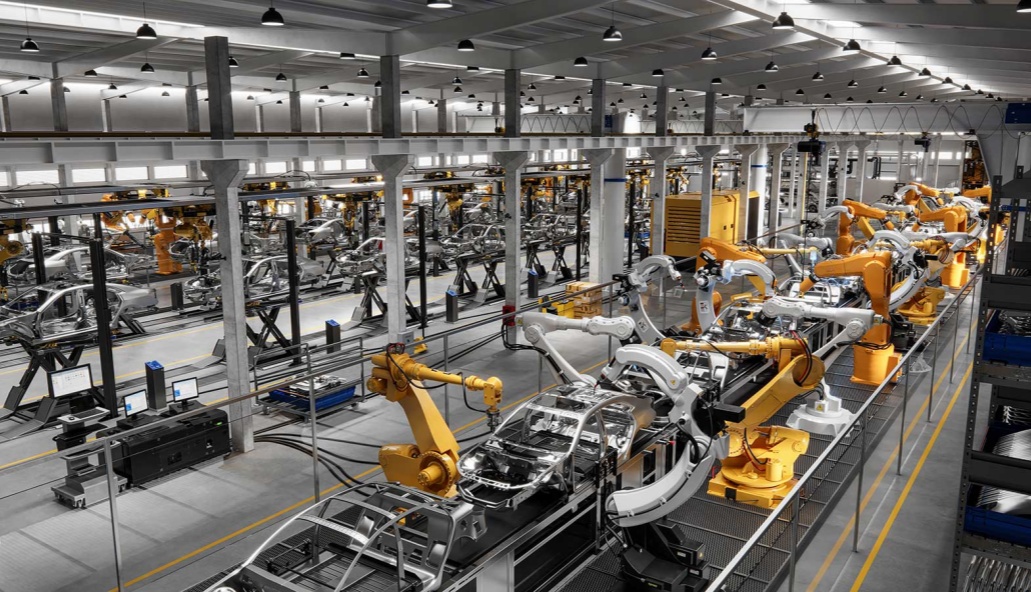

Mechanical Engineering

Essential for producing robust mechanical parts that require high durability and resistance to wear, perfect for high-stress applications.

Food Processing

Used for safe, hygienic food processing components.

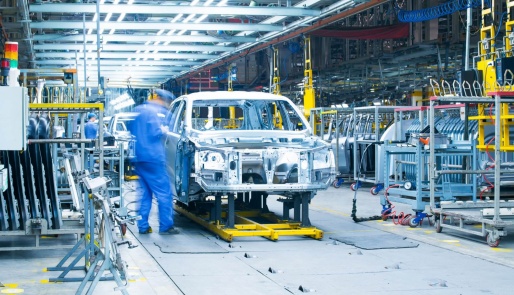

Automotive Industry

Utilized for lightweight, heat-resistant automotive elements.

Related Products

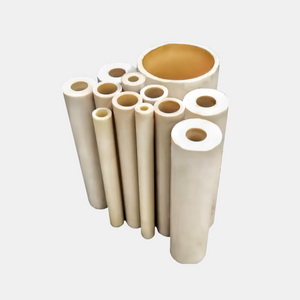

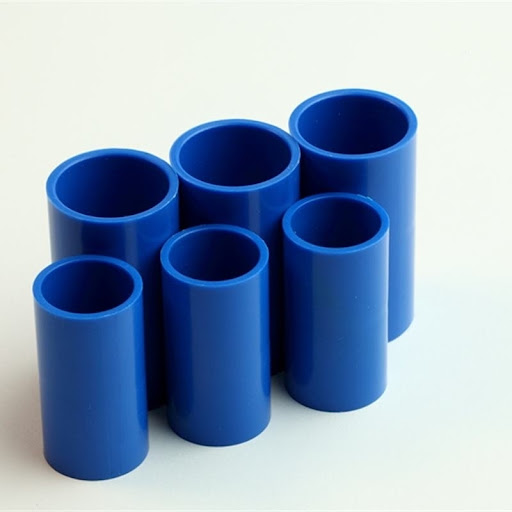

MC Nylon Tube

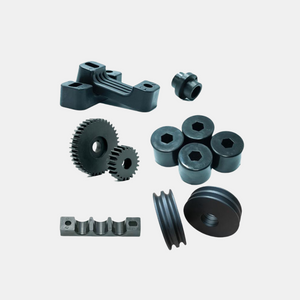

Near Net Shape Product

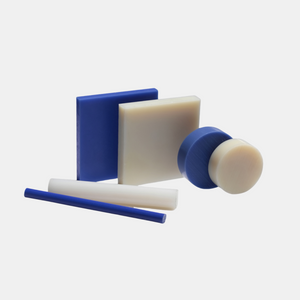

Other MC Nylon Products

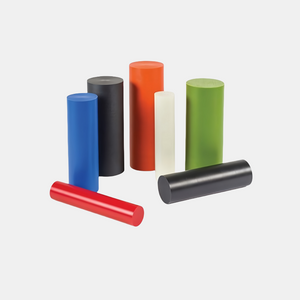

MC Nylon Rod

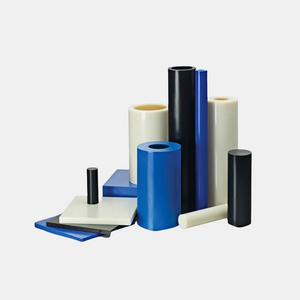

Custom MC Nylon Products

Related News

30 April 2025

Cast Nylon Density And Weight Calculation: Everything You Need To Know

Cast nylon, also known as MC nylon (monomer casting nylon), is a widely used engineering plastic thanks to its strength, wear resistance, and lightweight properties. Whether you're a manufacturer, engineer, or fabricator, understanding cast nylon density and how to calculate its weight is crucial fo

22 April 2025

What Is Cast Nylon? Properties, Process & Industrial Applications Explained

What Is Cast Nylon? An In-Depth Guide to Properties, Applications, and ManufacturingCast nylon is a high-performance engineering plastic known for its exceptional mechanical properties, chemical resistance, and wear durability. It is widely used across industries due to its ability to replace metal

16 April 2025

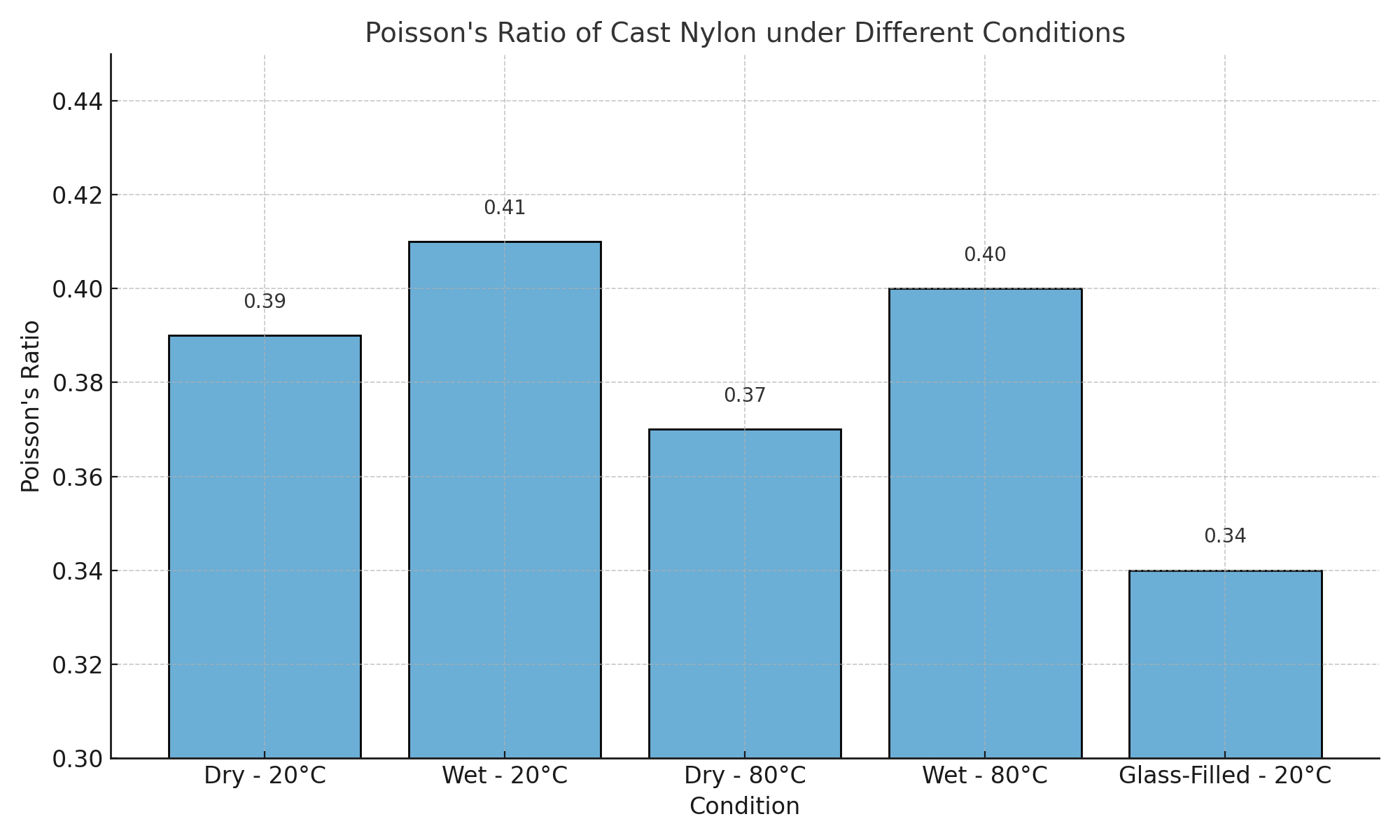

Understanding Cast Nylon Poisson’s Ratio And Its Impact on Mechanical Performance
