Flame Retardant Cast Nylon: Fire-Safe Solutions for Electrical and Transport Uses

Why Flame Resistance Matters in Plastics

Fire safety is a critical consideration in industries where plastic materials are used near electrical components, confined spaces, or heat sources. Ordinary plastics, including standard nylon, are flammable and can support combustion, which poses risks of:

• Fire propagation

• Toxic smoke release

• Equipment damage

• Regulatory non-compliance

Flame retardant cast nylon (PA6G-FR) addresses these concerns by incorporating specialized additives during the casting process, making the material inherently resistant to fire ignition and spread.

What Is Flame Retardant Cast Nylon?

Flame retardant cast nylon is a modified version of PA6G (cast nylon) that includes fire-inhibiting compounds such as:

• Red phosphorus

• Halogen-free flame retardants

• Mineral fillers (e.g., aluminum hydroxide)

These additives disrupt combustion chemistry, reduce flammable gas release, and promote the formation of protective char layers.

Depending on formulation, PA6G-FR can meet various fire safety certifications such as:

• UL94 V-0 / V-2

• IEC 60695

• EN 45545-2 (for railway applications)

Key Properties

How It Works

Flame retardants work by interrupting one or more stages of combustion:

1. Gas Phase Inhibition: Disrupting the free radicals that sustain the flame

2. Char Formation: Creating a protective barrier on the surface

3. Dilution Effect: Releasing non-combustible gases like water vapor to dilute oxygen

Some advanced PA6G-FR materials are also halogen-free, making them safer for confined spaces and compliant with modern environmental standards.

Advantages of FR Cast Nylon

✅ 1. Certified Fire Resistance

• Meets UL94 V-0: Self-extinguishing within 10 seconds, no flaming drips

• Available in low-smoke, non-halogen variants

✅ 2. Retained Mechanical Performance

• Maintains the toughness, wear resistance, and machinability of standard cast nylon

✅ 3. Electrical Safety

• Combines flame resistance with excellent insulation, making it perfect for circuit insulation components

✅ 4. Long-Term Stability

• Fire resistance is permanent and intrinsic, unaffected by wear or aging

Applications of Flame Retardant Cast Nylon

⚡ Electrical & Electronics

• Terminal blocks

• Switchgear insulators

• Cable clamps and guides

• Transformer spacers

Railway & Public Transport

• Interior panels and coverings

• Brackets inside control panels

• Seating frame supports

• Compliance with EN 45545-2

Industrial Machinery

• Enclosures in combustible atmospheres

• Insulation parts for HVAC and compressors

• Elevator components

Appliances & Automation

• Fuse holders

• Motor mounts

• Control box internals

Product Example: ZHnylon™ PA6G-FR

At ZHnylon, we offer a specialized flame retardant cast nylon grade developed for customers needing both fire safety and mechanical reliability.

Typical Specs:

• Color: Light grey or black (customizable)

• Flammability: UL94 V-0

• Operating temp: -30°C to +110°C

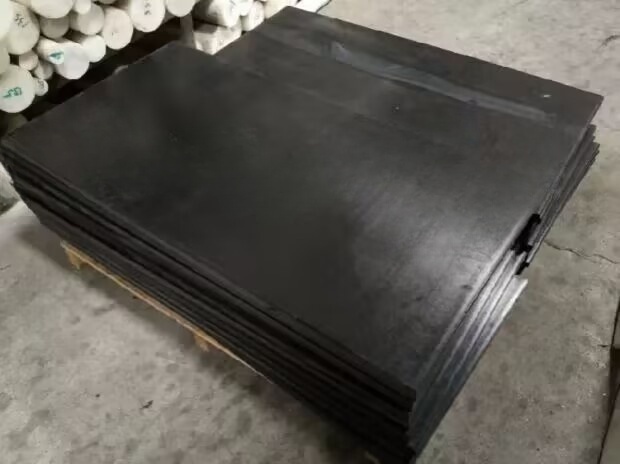

• Formats: Rods, plates, tubes, and machined components

We also support custom molding and CNC fabrication, ensuring the material fits your exact mechanical and regulatory requirements.

Design Considerations

1. Color Limitations: Some flame retardants limit available colors (often grey, black, or red)

2. Tooling: Slightly more abrasive than standard PA6G; use carbide tools

3. Cost: FR grades are typically 10–20% higher in cost—but lower in total risk

4. Testing: Ask for UL test certificates or 3rd-party burn test data when needed

Conclusion

Flame retardant cast nylon is a high-performance, safety-focused engineering material for environments where fire risk is unacceptable. Whether you're designing electrical systems, railway interiors, or enclosed machines, this material delivers the ideal balance of strength, insulation, and fire resistance.

At ZHnylon, we manufacture and export flame retardant PA6G products in rods, tubes, sheets, and custom machined parts—ready to meet your safety standards and performance expectations.

Get in touch today for datasheets, samples, or volume pricing.
