Glass Filled Nylon vs Standard Nylon

When evaluating glass filled nylon vs standard nylon, the key difference lies in performance under stress. While standard cast nylon is known for its versatility and wear resistance, reinforced nylon introduces a significant upgrade in strength and rigidity.

For industries that require high strength nylon, glass fiber reinforcement offers a practical solution. However, this improvement also comes with trade-offs that must be carefully considered.

This guide explains how reinforcement works, compares mechanical properties, and outlines when upgrading to glass filled nylon makes sense.

How Glass Fiber Reinforcement Improves Performance

Glass filled nylon is created by adding glass fibers into the nylon matrix during production. This transforms the base material into a reinforced nylon with enhanced structural properties.

Reinforcement Mechanism

The glass fibers act as a supporting framework within the nylon, providing:

• Increased tensile strength

• Improved stiffness

• Better resistance to deformation

These fibers distribute stress more evenly throughout the material, reducing weak points.

Structural Benefits

Compared to standard nylon, glass filled nylon offers:

• Higher load-bearing capacity

• Reduced creep under long-term stress

• Improved dimensional stability

This makes it particularly useful in precision components.

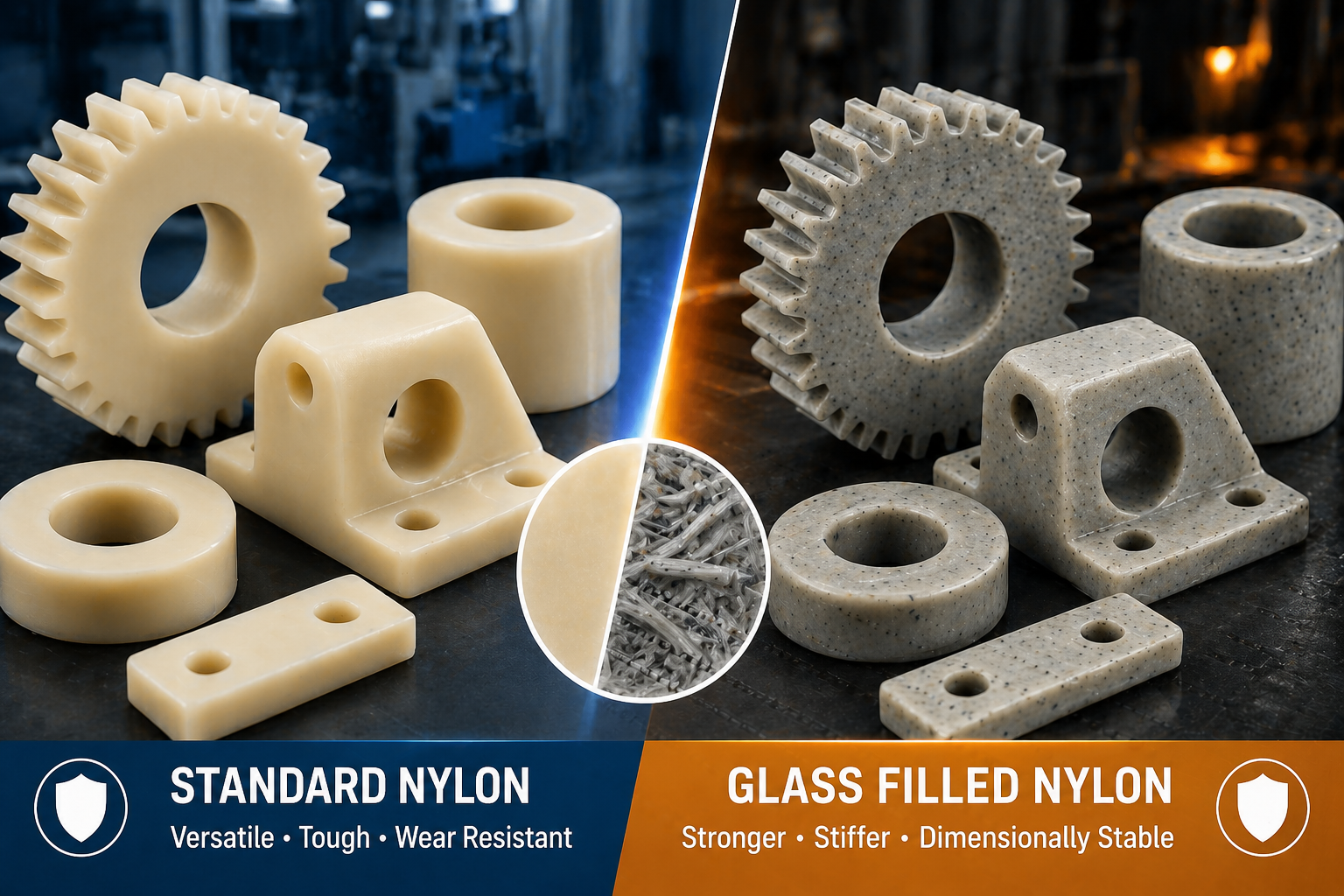

Material Structure Comparison

Key Insight

The addition of glass fibers transforms nylon from a general-purpose plastic into a high-performance engineering material suitable for demanding applications.

Mechanical Strength and Rigidity Comparison

One of the most important aspects of nylon vs reinforced nylon is mechanical performance.

Strength Comparison

Glass filled nylon typically provides:

• 30%–100% higher tensile strength

• Improved compressive strength

• Better resistance to mechanical stress

Standard nylon, while strong, cannot match this level of reinforcement.

Rigidity and Stiffness

Glass fibers significantly increase stiffness, which results in:

• Less bending under load

• Improved dimensional accuracy

• Better performance in structural applications

Performance Comparison Table

Trade-Off: Impact Resistance

While strength increases, impact resistance may decrease slightly. Glass filled nylon is more rigid but less flexible than standard nylon.

Best Applications for Reinforced Nylon

Glass filled nylon is widely used in industries where high strength nylon is required.

Typical Applications

1. Structural Components

• Load-bearing brackets

• Machine housings

• Support frames

2. Automotive Parts

• Engine components

• Under-the-hood applications

3. Industrial Machinery

• High-load gears

• Mechanical supports

• Precision parts

Application Suitability Table

Industry Insight

In many cases, upgrading to reinforced nylon can replace metal components, reducing weight while maintaining strength.

Limitations You Should Know

Despite its advantages, glass filled nylon is not suitable for every application.

1. Reduced Impact Resistance

The increased stiffness makes the material more brittle under sudden impact.

2. Higher Abrasiveness

Glass fibers can:

• Increase wear on mating surfaces

• Cause more tool wear during machining

3. Surface Finish

Compared to standard nylon:

• Surface may be rougher

• Less suitable for low-friction sliding applications

4. Cost Consideration

Glass filled nylon is generally more expensive due to:

• Added material complexity

• Processing requirements

Limitations Summary Table

Choosing the Right Material

Selecting between glass filled nylon vs standard nylon depends on application priorities.

Decision Factors

Ask the following:

1. Is high strength required?
   → Choose glass filled nylon

2. Is impact resistance critical?
   → Choose standard nylon

3. Is dimensional stability important?
   → Glass filled nylon performs better

4. Is friction a key factor?
   → Standard nylon may be more suitable

Quick Selection Guide

Practical Recommendation

For applications requiring both strength and customization, working with experienced suppliers—such as those offering engineered materials like ZHnylon™—can help optimize material selection and ensure consistent quality.

FAQs

1. What is glass filled nylon?

It is nylon reinforced with glass fibers to improve strength, stiffness, and dimensional stability.

2. Is glass filled nylon stronger than standard nylon?

Yes, it offers significantly higher tensile strength and rigidity.

3. Does reinforcement affect flexibility?

Yes, it reduces flexibility and impact resistance.

4. Where is reinforced nylon used?

It is used in structural components, automotive parts, and industrial machinery.

5. Is glass filled nylon more expensive?

Yes, due to added materials and processing complexity.

6. Can it replace metal parts?

In many cases, yes—especially where weight reduction is important.

Conclusion

The comparison of glass filled nylon vs standard nylon highlights a clear performance upgrade in strength, rigidity, and dimensional stability. Glass filled nylon is ideal for demanding applications where structural integrity is critical, while standard nylon remains a versatile choice for wear resistance and flexibility.

By understanding the strengths and limitations of each material, engineers and buyers can make informed decisions that improve performance and maximize value. Upgrading to reinforced nylon is often a strategic move for achieving higher efficiency and long-term reliability in industrial systems.
